Wheel bolt Volvo XC90 2002-2015
Originator: LuftfahrradCar: Volvo
Label: XC90
Build: 2002-2015
Type: C
| PCD: | VA: 108/5 | HA: 108/5 |
| Center Bore: | VA: 67,1 | HA: 67,1 |
| Thread: | VA: M14x1,5 | HA: M14x1,5 |
| 2%-limit | VA: 34 | HA: 34 |
| approval SCC | VA: 33 | HA: 33 |
Steel wheel
| Art-nr.: | VA: M1415KE287 | HA: M1415KE287 |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: 28 | HA: 28 |
| Hex: | VA: 17 | HA: 17 |
| tightening torque: | VA: | HA: |
Alloy wheel
| Art-nr.: | VA: M1415KE287 | HA: M1415KE287 |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: 28 | HA: 28 |
| Hex: | VA: 17 | HA: 17 |
| tightening torque: | VA: 140 | HA: 140 |
Volvo
XC90
2002-2015
Type: C
XC90
2002-2015
Type: C
original wheel
Alloy wheel
Steel wheel
Typ A5X (A5V/A5W)
Please mind the different types of bolts and their specific dimensions:
- Height hex (A): 13 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 22 mm
- Hex: 17 mm
- Length: 25 - 60 mm
- Color: optionally silver or black galvanized
- Height hex (A): 13 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 22 mm
- Hex: 17 mm
- Length: 25 - 60 mm
- Color: optionally silver or black galvanized

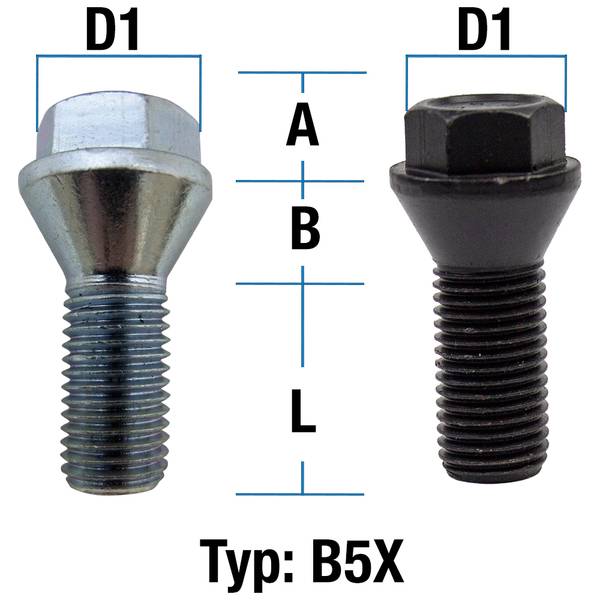

Typ B5X (B5V/B5W)
Please mind the different types of bolts and their specific dimensions:
- Height hex (A): 7 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 23 mm
- Hex: 17 mm
- Length: 21 - 35 mm
- Color: optionally silver or black galvanized
- Height hex (A): 7 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 23 mm
- Hex: 17 mm
- Length: 21 - 35 mm
- Color: optionally silver or black galvanized
Typ A1G
Please mind the different types of bolts and their specific dimensions:
- Height hex (A): 13 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 23 mm
- Hex: 17 mm
- Length: 23 - 60 mm
- Color: dacromet / geomet
- Height hex (A): 13 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 23 mm
- Hex: 17 mm
- Length: 23 - 60 mm
- Color: dacromet / geomet
Typ A2V
Please mind the different types of bolts and their specific dimensions:
- Height hex (A): 11 mm
- Height conical collar (B): 8 mm
- Head diameter (D1): 21 mm
- Hex: 17 mm
- Length: 28 - 30 mm
- Color: galvanized
- Height hex (A): 11 mm
- Height conical collar (B): 8 mm
- Head diameter (D1): 21 mm
- Hex: 17 mm
- Length: 28 - 30 mm
- Color: galvanized
