Wheel bolt Renault R5 1984-1996
Originator: SCC Fahrzeugtechnik GmbHCar: Renault
Label: R5
Build: 1984-1996
Type: B, C40, C40S
| PCD: | VA: 100/4 | HA: 100/4 |
| Center Bore: | VA: 60,1 | HA: 60,1 |
| Thread: | VA: M12x1,5 | HA: M12x1,5 |
| 2%-limit | VA: 22 | HA: 22 |
Steel wheel
| Art-nr.: | VA: M1215KE289 | HA: M1215KE289 |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: 28 | HA: 28 |
| Hex: | VA: 19 | HA: 19 |
| tightening torque: | VA: | HA: |
Alloy wheel
| Art-nr.: | VA: M1215KE289 | HA: M1215KE289 |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: 28 | HA: 28 |
| Hex: | VA: 19 | HA: 19 |
| tightening torque: | VA: 90 | HA: 90 |
Renault
R5
1984-1996
Type: B, C40, C40S
R5
1984-1996
Type: B, C40, C40S
original wheel
Alloy wheel
Steel wheel
Typ C3V
Please mind the different types of bolts and their specific dimensions:
- Height hex (A): 13,0 mm
- Height conical collar (B): 12,0 mm
- Head diameter (D1): 23,0 mm
- Hex: 19 mm
- Length: 22 - 50 mm
- Color: galvanized
- Height hex (A): 13,0 mm
- Height conical collar (B): 12,0 mm
- Head diameter (D1): 23,0 mm
- Hex: 19 mm
- Length: 22 - 50 mm
- Color: galvanized

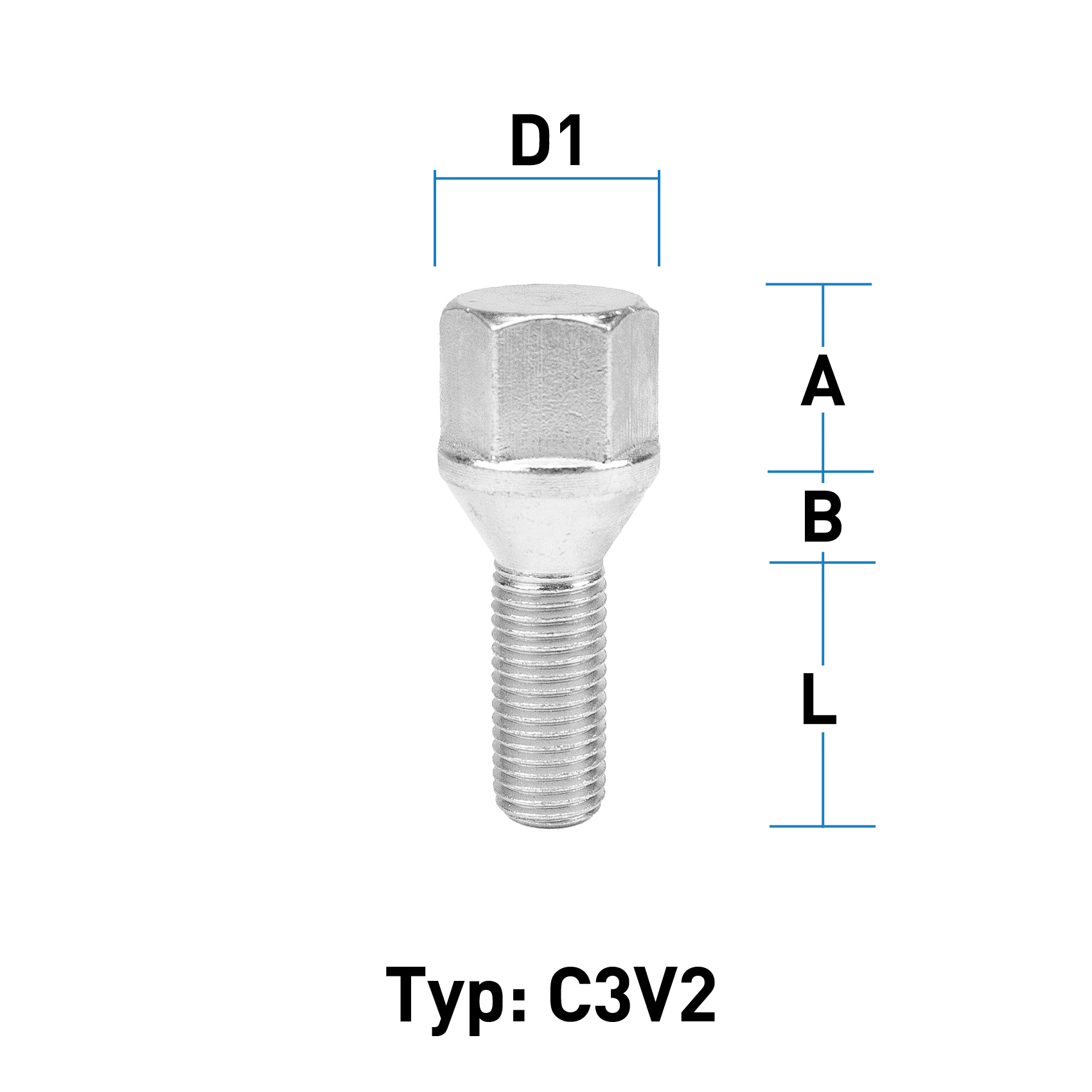

Typ C3V2
Please note the different wheel bolt types and their specific dimensions:
- Hex height (A): 14 mm
- Conical seat height (B): 12 mm
- Head diameter (D1): 22 mm
- Hex size: 19 mm
- Length: 28 mm
- Color: zinc-plated
