Wheel bolt Genesis G90 2021-
Originator: Damian B OhCar: Genesis
Label: G90
Build: 2021-
Type: RS4
| PCD: | VA: 114,3/5 | HA: 114,3/5 |
| Center Bore: | VA: 67,1 | HA: 67,1 |
| Thread: | VA: M14x1,5 | HA: M14x1,5 |
| 2%-limit | VA: 16 | HA: 30 |
Steel wheel
| Art-nr.: | VA: | HA: |
| Mounting type: | VA: Mutter | HA: Mutter |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: Mutter | HA: Mutter |
| Hex: | VA: 21 | HA: 21 |
| tightening torque: | VA: | HA: |
Alloy wheel
| Art-nr.: | VA: M1415KEGE | HA: M1415KEGE |
| Mounting type: | VA: Mutter | HA: Mutter |
| Stud: | VA: | HA: |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: Mutter | HA: Mutter |
| Hex: | VA: 21 | HA: 21 |
| tightening torque: | VA: | HA: |
Genesis
G90
2021-
Type: RS4
G90
2021-
Type: RS4
original wheel
Alloy wheel
Steel wheel
Typ H40E2
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 37 mm
- Height hex (A): 24 mm
- Height conical collar (B): 12 mm
- Head diameter: 31 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 37 mm
- Height hex (A): 24 mm
- Height conical collar (B): 12 mm
- Head diameter: 31 mm
- Hex: 21 mm
- Color: galvanized
Typ H40E
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 42,5 mm
- Height hex (A): 22 mm
- Height conical collar (B): 20,4 mm
- Head diameter (D1): 31 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 42,5 mm
- Height hex (A): 22 mm
- Height conical collar (B): 20,4 mm
- Head diameter (D1): 31 mm
- Hex: 21 mm
- Color: galvanized
Typ H25V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 29 mm
- Height hex (A): 18,5 mm
- Height conical collar (B): 10,5 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 29 mm
- Height hex (A): 18,5 mm
- Height conical collar (B): 10,5 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
Typ M2V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 30 mm
- Height hex (A): 20 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 30 mm
- Height hex (A): 20 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized

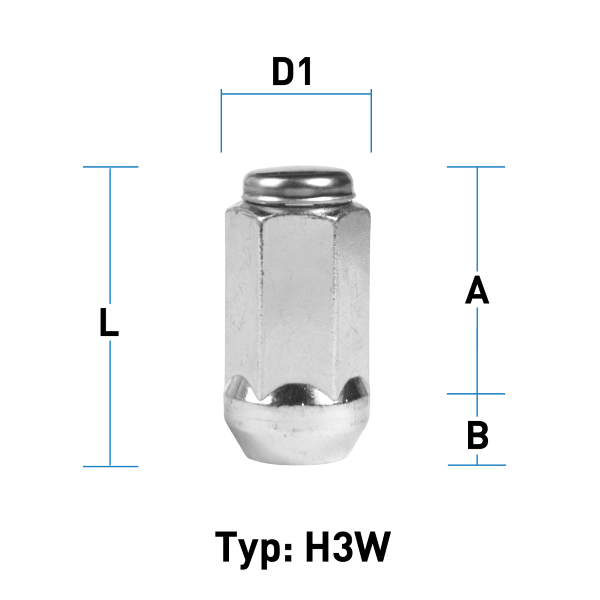

Typ H3W
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 49 mm
- Height hex (A): 37 mm
- Height conical collar (B): 12 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 49 mm
- Height hex (A): 37 mm
- Height conical collar (B): 12 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
Typ H14V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 24 mm
- Height hex (A): 11,5 mm
- Height conical collar (B): 21,5 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
- Total height: 24 mm
- Height hex (A): 11,5 mm
- Height conical collar (B): 21,5 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
Typ N5G
Please mind the different types of wheel nuts and their specific dimensions:
- Total height (A): 15 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized
- Total height (A): 15 mm
- Head diameter (D1): 24 mm
- Hex: 21 mm
- Color: galvanized

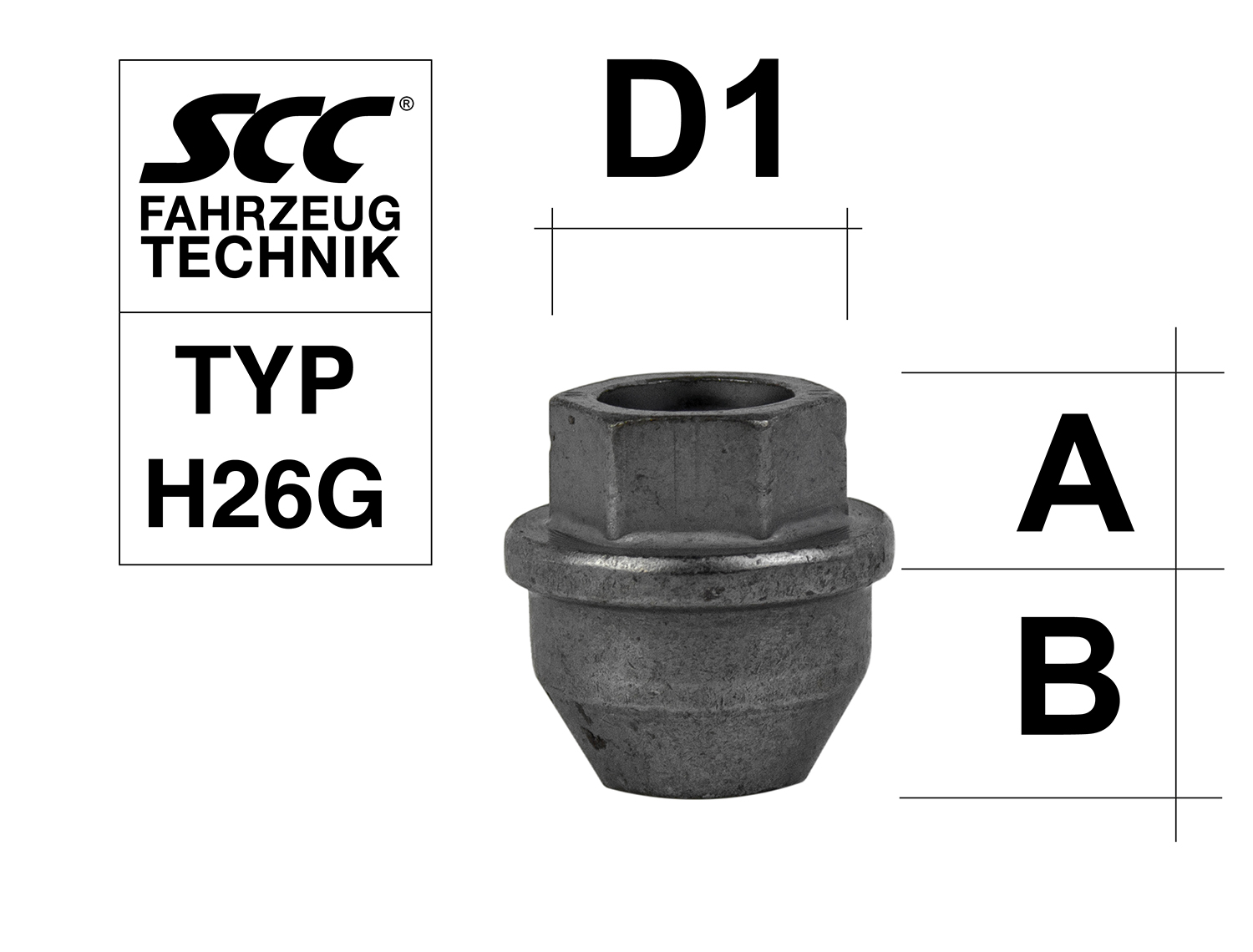

Typ H26G
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 31 mm
- Height hex (A): 15,1mm
- Height conical collar (B): 15,7 mm
- Head diameter (D1): 23,5 mm
- Oiled surface
- Total height: 31 mm
- Height hex (A): 15,1mm
- Height conical collar (B): 15,7 mm
- Head diameter (D1): 23,5 mm
- Oiled surface
Typ J9V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 34 mm
- Height hex (A): 20 mm
- Height conical collar (B): 14 mm
- Head diameter: 28 mm
- Hex: 21 mm
- Color: galvanized, Strength 10
- with stainless steel cap
- with movable conical collar
- Total height: 34 mm
- Height hex (A): 20 mm
- Height conical collar (B): 14 mm
- Head diameter: 28 mm
- Hex: 21 mm
- Color: galvanized, Strength 10
- with stainless steel cap
- with movable conical collar

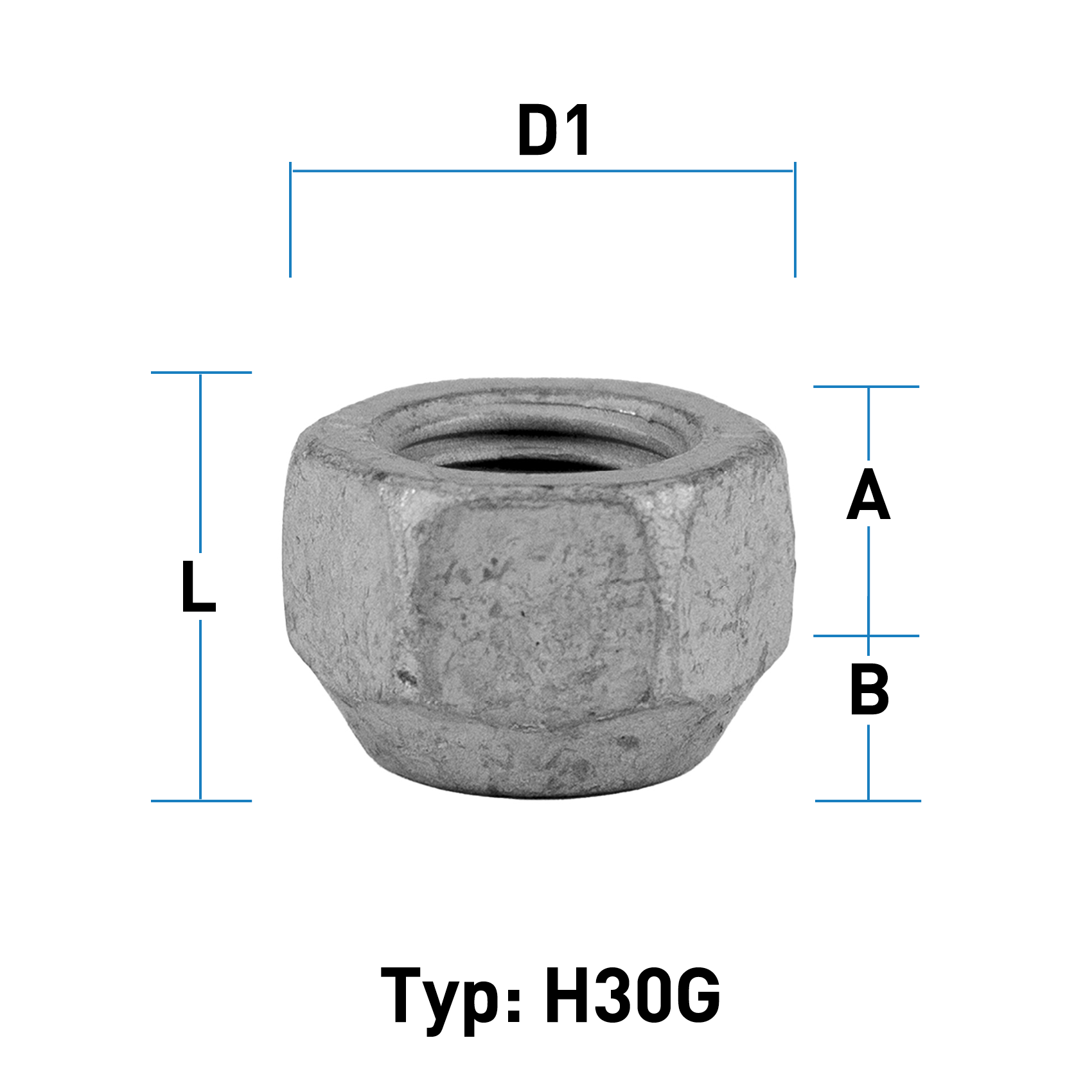

Typ H30G
Please note the different wheel bolt types and their specific dimensions:
- (A): 11 mm - (B): 5 mm - (D1): 27 mm
- Hex size (SW): 19 mm - Length (L): 16 mm - Colour: zinc-plated
