Wheel bolt Aston Martin DBS 2007-2012
Originator: Linus Egger from Munich, GermanyCar: Aston Martin
Label: DBS
Build: 2007-2012
Type: VH1
| PCD: | VA: 114,3/5 | HA: 114,3/5 |
| Center Bore: | VA: 68,1 | HA: 68,1 |
| Thread: | VA: M14x2,0 | HA: M14x2,0 |
| 2%-limit | VA: 27 | HA: 39 |
Steel wheel
| Art-nr.: | VA: M1420KEGN | HA: M1420KEGN |
| Mounting type: | VA: Mutter | HA: Mutter |
| Stud: | VA: M1420RE50F | HA: M1420RE50F |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: Mutter | HA: Mutter |
| Hex: | VA: 19 | HA: 19 |
| tightening torque: | VA: 120 | HA: 120 |
Alloy wheel
| Art-nr.: | VA: M1420KEGN | HA: M1420KEGN |
| Mounting type: | VA: Mutter | HA: Mutter |
| Stud: | VA: M1420RE50F | HA: M1420RE50F |
| Head: | VA: Kegel 60° | HA: Kegel 60° |
| Length: | VA: Mutter | HA: Mutter |
| Hex: | VA: 19 | HA: 19 |
| tightening torque: | VA: 120 | HA: 120 |
Aston Martin
DBS
2007-2012
Type: VH1
DBS
2007-2012
Type: VH1
original wheel
Alloy wheel
Steel wheel
Typ H24V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 41 mm
- Height hex (A): 28,5 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: galvanized
- Total height: 41 mm
- Height hex (A): 28,5 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: galvanized
Typ M1V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 30 mm
- Height hex (A): 20 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 25 mm
- Hex: 19 mm
- Color: galvanized
- Total height: 30 mm
- Height hex (A): 20 mm
- Height conical collar (B): 10 mm
- Head diameter (D1): 25 mm
- Hex: 19 mm
- Color: galvanized
Typ H5V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 17 mm
- Height hex (A): 9 mm
- Height conical collar (B): 8 mm
- Head diameter (D1): 22 mm
- Hex: 19 mm
- Color: galvanized
- Total height: 17 mm
- Height hex (A): 9 mm
- Height conical collar (B): 8 mm
- Head diameter (D1): 22 mm
- Hex: 19 mm
- Color: galvanized
Typ H7V
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 25 mm
- Height hex (A): 12,5 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: galvanized
- Total height: 25 mm
- Height hex (A): 12,5 mm
- Height conical collar (B): 12,5 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: galvanized
Typ N5W
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 15 mm
- Head diameter (D1): 21 mm
- Hex: 19 mm
- Color: black galvanized
- Total height: 15 mm
- Head diameter (D1): 21 mm
- Hex: 19 mm
- Color: black galvanized

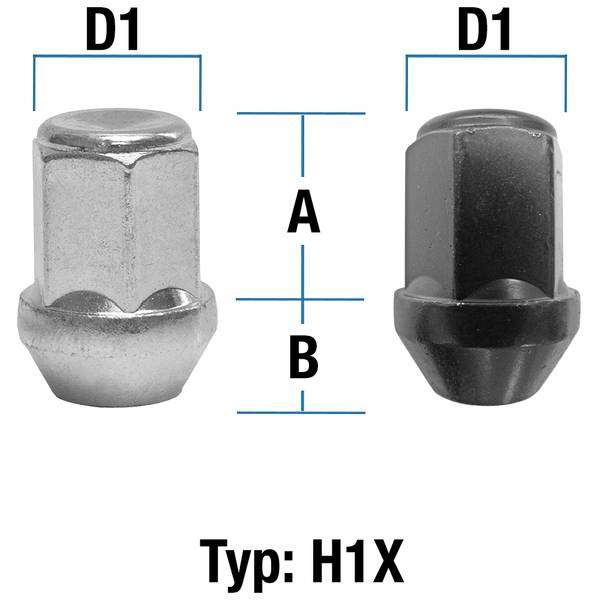

Typ H1X (H1V/H1W)
Please mind the different types of wheel nuts and their specific dimensions:
- Total height: 34 mm
- Height hex (A): 21 mm
- Height conical collar (B): 13 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: optionally silver or black galvanized
- Total height: 34 mm
- Height hex (A): 21 mm
- Height conical collar (B): 13 mm
- Head diameter (D1): 24 mm
- Hex: 19 mm
- Color: optionally silver or black galvanized
