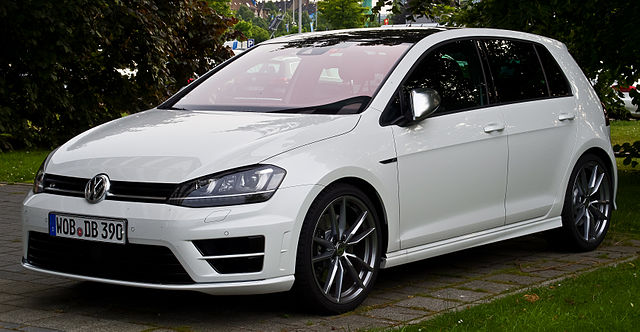

Adaption Volkswagen Golf VII R 2013-2021
Originator: M 93Car: Volkswagen
Label: Golf VII R
Build: 2013-2021
Type: AU (Golf VII R)
| PCD: | VA: 112/5 | HA: 112/5 |
| Center Bore: | VA: 57,1 | HA: 57,1 |
| Thread: | VA: M14x1,5 | HA: M14x1,5 |
| 2%-limit | VA: 28 | HA: 28 |
| approval SCC | VA: 33 | HA: 33 |
| individual TÜV approval | VA: 5 | HA: 5 |
Steel wheel
| Art-nr.: | VA: M1415KU27J | HA: M1415KU27J |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kugel R13 | HA: Kugel R13 |
| Length: | VA: 27 mm | HA: 27 mm |
| Hex: | VA: SW 17 | HA: SW 17 |
| tightening torque: | VA: 120 | HA: |
Alloy wheel
| Art-nr.: | VA: M1415KU27J | HA: M1415KU27J |
| Mounting type: | VA: Schraube | HA: Schraube |
| Stud: | VA: | HA: |
| Head: | VA: Kugel R13 | HA: Kugel R13 |
| Length: | VA: 27 mm | HA: 27 mm |
| Hex: | VA: SW 17 | HA: SW 17 |
| tightening torque: | VA: 120 | HA: 120 |
| Material report Download | Unfortunately, for this product there is no specific TÜV-part approval. You can find our TÜV-material and strength report by clicking the button. This report can be used for §21 acceptance tests where a TÜV-check is needed. |
Golf VII R
2013-2021
Type: AU (Golf VII R)
Hub adaption System 2 - Push-through system with double centering
Our system for the adaption of the center bore. Longer wheel fastening parts are required, which must be ordered separately. Please pay attention to the design of your original screws/nuts (conical or spherical seat and thread/shaft length).
- Thickness: Indication in mm per wheel
- Packaging unit: 2 pieces (= 1 axle)
- Price: in EUR incl. stat. VAT
Watch mounting video on YouTube
Download mounting instructions as PDF file
| PCD wheel: 112/5 + 100/5 | CB: 66,6 | Thread wheel: | |
|---|
| PCD wheel: 112/5 + 100/5 | CB: 66,6 | Thread wheel: |
|---|
| PCD wheel: 112/5 + 100/5 | CB: 72,6 | Thread wheel: | |
|---|
| PCD wheel: 112/5 + 100/5 | CB: 72,6 | Thread wheel: |
|---|
| PCD wheel: 112/5 + 100/5 | CB: 82,1 | Thread wheel: | |
|---|
| PCD wheel: 112/5 + 100/5 | CB: 82,1 | Thread wheel: |
|---|
| Thickness | Product-nr. | Stock | Price per axle from | |
|---|---|---|---|---|
| 17 mm | 22295 | in stock | 117,00 EUR | |
| 25 mm | 22471 | SPECIAL PRICE | in stock | 42,99 EUR |
Hub Bore and Bolt Pattern Adapter System 4 RT (RaceTech) - Fixed-Mount System with Dual Centering and Threaded Inserts
Our RaceTech spacers differ from standard models in terms of technology! RaceTech spacers are manufactured exclusively from EN AW 7075 aluminum alloy, used in the aerospace industry, and are therefore even more resilient than our regular spacers. In short: RaceTech spacers are stronger than conventional wheel spacers!
Adapter discs from our System 4 are bolted directly to the vehicle and provide optimal driving behavior through dual centering. The adapters are mounted using the supplied fastening material. Then, the wheel can be mounted to the spacer using the original wheel bolts – making the system truly plug-and-play.
In System 4 RT, threads are either cut directly into the alloy or reinforced with stainless steel thread inserts to reduce wear. It is optionally available as uncoated or anodized in color. The color and thread type can be selected on the product detail page. The bolt pattern, centering, and thread can be adapted – however, the number of bolt holes on the vehicle and the wheel must match (e.g., 5 to 5-hole).
- Spacer thickness: Indication in mm per wheel
- Packaging unit: 2 pieces (= 1 axle)
- Mounting material included
- Price: in EUR incl. stat. VAT
Watch mounting video on YouTube
Download mounting instructions as PDF file
| PCD wheel: 100/5 | CB: 57,1 | Thread wheel: M14x1,5 | |
|---|
| PCD wheel: 100/5 | CB: 57,1 | Thread wheel: M14x1,5 |
|---|
| Thickness | Product-nr. | Stock | Price per axle from | |
|---|---|---|---|---|
| 20 mm | 24113M14S | in stock | 157,00 EUR |
| PCD wheel: 120/5 | CB: 72,6 | Thread wheel: M12x1,5 | |
|---|
| PCD wheel: 120/5 | CB: 72,6 | Thread wheel: M12x1,5 |
|---|
| Thickness | Product-nr. | Stock | Price per axle from | |
|---|---|---|---|---|
| 20 mm | 24645M14S | BESTSELLER | in stock | 170,00 EUR |
| 30 mm | 24648M14S | in stock | 233,00 EUR |
