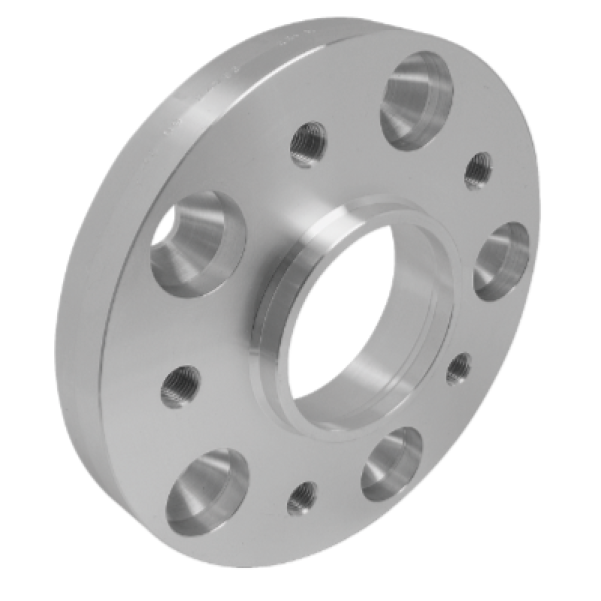

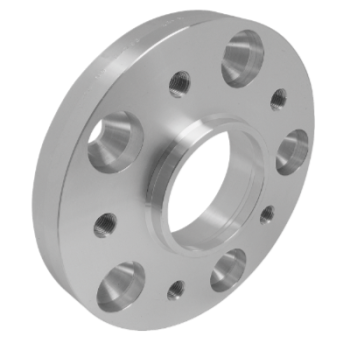

Wheel Spacer System 4 RT (RaceTech) - 13156S
Fixed-Mount System with Dual Centering and Threaded Inserts
Our RaceTech spacers differ from the normal versions in terms of technology! RaceTech spacers are made exclusively from the aluminium alloy EN AW 7075, which is used in aerospace, and are therefore even more resilient than our standard spacers. In short: RaceTech spacers are stronger and lighter than conventional wheel spacers!
The wheel spacer 13156S is a bolt-on system with screw threads and double centering. The spacers are fastened to the vehicle using the included mounting hardware. The wheels are then mounted using the original wheel bolts, screwed into the spacer threads.
No longer wheel bolts are required for System 4 spacers – in most cases, the system is plug-and-play*. The spacers are made from a special high-strength aluminium-magnesium alloy.
Technical data:
- Spacer thickness: 25mm per wheel (= 50mm per axle)
- PCD Pitch circle diameter: 108/5
- ZBD Hub: 65,1mm
- Thread: M12x1,25
Packaging unit: 2 pieces (= 1 axle) incl. mounting material
Watch mounting video on YouTube
Download mounting instructions as PDF file
*Please note: For spacers under 25 mm, shorter wheel bolts may be required. Maximum thread depth = thickness - 2 mm.
All images are for illustrative purposes only and are not to scale.
